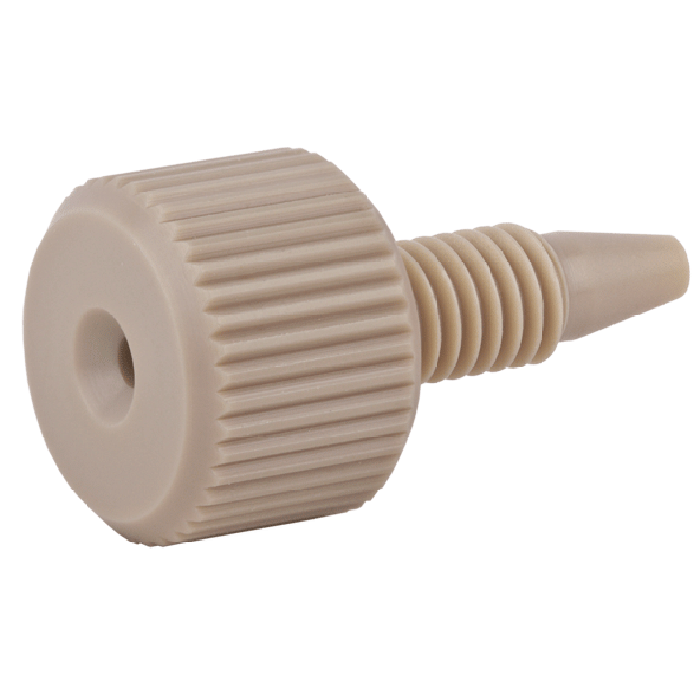

Tubing Connector Fittings, High Pressure, One Piece, 1/16, PEEK, Natural, Large Head with 10-32 Screw Threads. Finger Tighten

These all PEEK “Male Nuts” are used to connect PEEK or Stainless Steel tubing in the high pressures zones of HPLC systems.

Fitting has a 12mm diameter knurled head, 25mm total length (top to bottom) with an 16mm thread length.

The long length is useful when your column or union or detector has a deep threaded fitting and the extra length is needed to seat the tubing properly. The beveled inlet hole helps to make threading the tubing through the fitting easier.
